Headset tester
HT-2
OPT-1

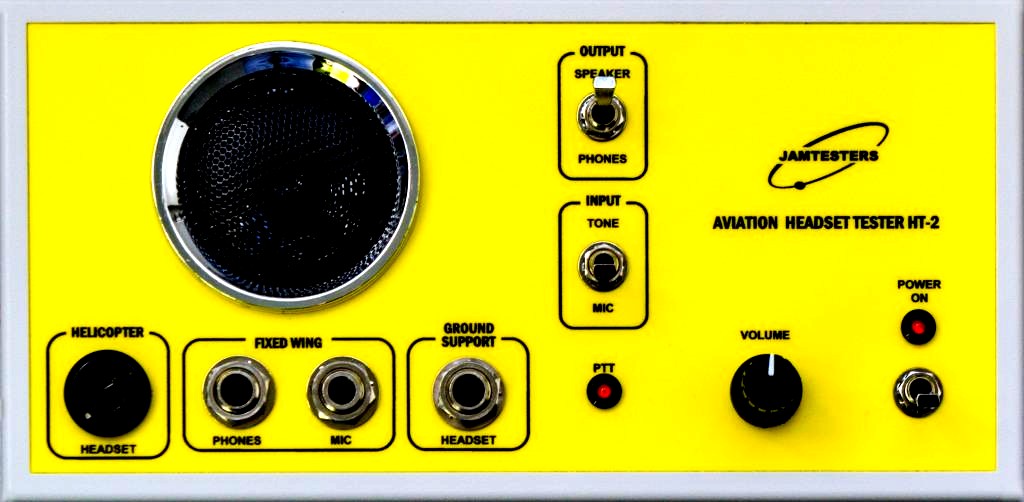

The HT-2 is one of the best headset tester for high impedance aviation helmets headsets, headphones and mikes.
It is iqually useful in the lab, the shop or the flight line.
The HT-2 is a microprocessor-based headset tester that can test HIGH impedance:
FIXED WING HEADSETS
HELICOPTER HEADSETS
GROUND MECHANIC HEADSETS
WIRED GROUND CREW HEADSETS
WIRELESS GROUND CREW HEADSETS
WIRED AIRCRAFT PUSH BACK HEADSETS
BLUETOOTH AIRCRAFT PUSH BACK HEADSETS
AUXILIARY MIKES
HIGH IMPEDANCE HEADPHONES
HEADSETS AND MICROPHONES EXTENSION WIRES
The HT-2 is a hands free and fully autonomous headset tester; it does not need, as other testers do, a headset in perfect condition to check other headsets or microphones.
Not having to keep depressed any switch to activate the tester gives the advantage of using both hands to find momentary interruptions in the wiring.
This tester in case of distortion can quickly determine if the distortion is generated in the headphones side or the mike side of the headset. Its design, its high quality speaker, its pure sine generator and its low distortion amplifiers make it possible.

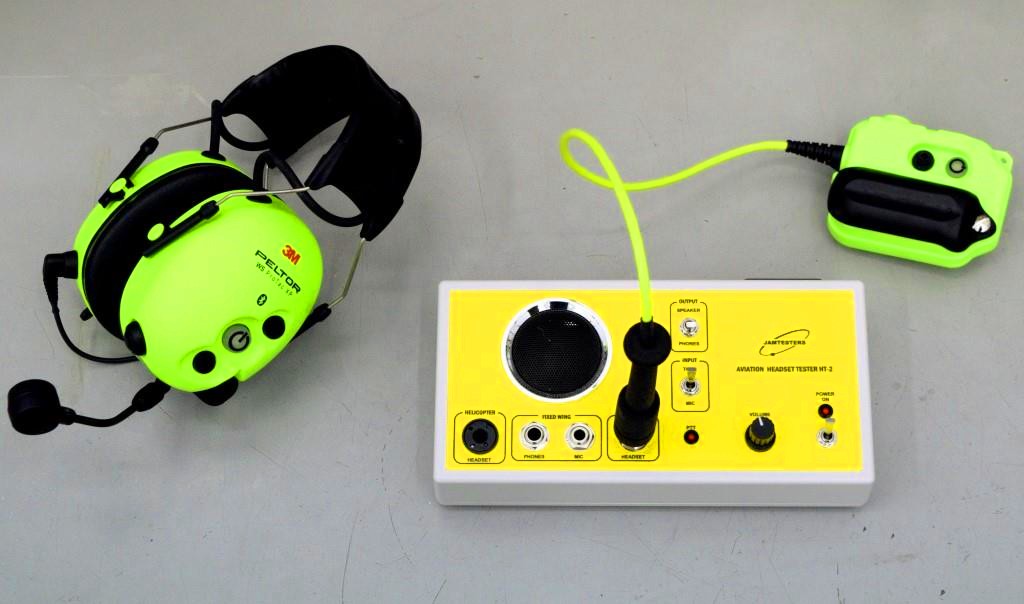

The HT-2 can test headsets f.e. SENNHEISER HME100, PELTOR 8006,8003, and others high impedance aviation headsets made by BOSE , DAVID CLARK , TELEX , SENNHEISER , LIGHTSPEED , CLARITY ALOFT, SIGTRONICS , PILOT AVIATION etc.
Features:
Test microphones fidelity by amplifying its output, under normal speech conditions, and applying the signal to the phones or the front panel speaker.
Test headphones, using an external microphone or an internal 1 KHz sinusoidal tone.
Test mono a nd stereo headphones.
Test PTT switches and extension wires.
It is powered by a 9V battery and has a battery alert when the battery is low.
Accepts:
M642/4-1 (PJ-055B)
M642/5-1 (PJ-068)
M642/2-1 (PJ-051B)
U-174/U plugs.
Options:
OPT-1 AC Adapter (*): With this option the HT2 can be electrically powered by either a replaceable 9V battery or externally with 90-240 VAC, 50/60 Hz.
(*)These option is only available at the moment of the purchase of the tester.
